1. Implementation standards: GB 3836.1, GB 3836.2, GB 3836.3, GB 12476.1, IEC 60079
2. Explosion-proof signs: Exde II BT6, DIP A20 TA, T6
3. Rated voltage: AC 220V/380V
4. Rated current of main circuit: 20A-250A
5. Number of branches: 2, 4, 6, 8, 10, 12
6. Branch rated current: 1A, 3A, 5A, 10A, 15A, 20A, 25A, 32A, 40A, 50A, 60A
7. Protection Level: IP54 (II B), IP55 (DIP), IP65 (with rain shield)
8. Antiseptic grade: WF1
9. Entry Specification: G1/2~G3“
10. Applicable cable cable cable outer diameter: 6-55mm
11. Direction of Inlet and Outlet: Down-in, Down-in, Up-in, Up-out or Up-in and Down-out. The distribution box should be installed outside the explosion-proof zone. The power supply should be introduced into the explosion-proof zone by cable. The distribution box has the functions of overload, short circuit and leakage maintenance. The device of the distribution box is very simple. The power box can be hung up by fixing two hanging iron on the wall according to the regular size. In addition, our company can provide users with a variety of non-control functions of the distribution system, from simple temperature control, overload and short-circuit maintenance to temperature program control, maintenance and alarm until the computer stops remote control of the heating mixing system.
Product characteristics

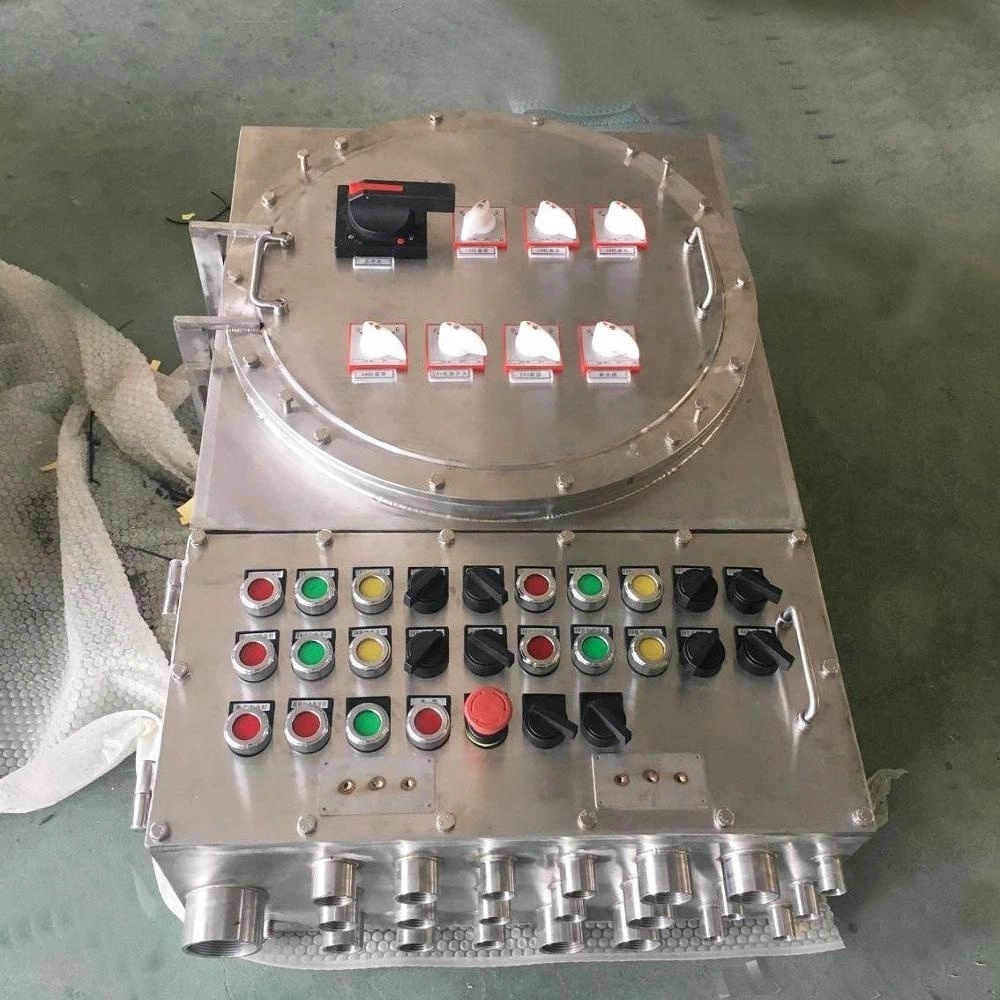

1. The shell of explosion-proof distribution box is welded with 304 stainless steel plate. The surface is high voltage electrostatic sprayed with stainless steel exposed fasteners. The product has beautiful appearance.
2. Explosion-proof distribution boxes are well designed, safe and easy to use. Our company provides one-year warranty free of charge.
3. Box drawings can be provided by your company or produced by our company.
4. The explosion-proof lighting power distribution boxes adopt composite and modular structure, and the loops can be assembled freely according to the needs. The general switch boxes adopt flameproof structure, and the bus boxes and outlet boxes adopt Safety-increasing structure.
