Main technical parameters:
Rated voltage (V): 380
Rated Current (A): 10, 20, 32, 40
Explosion-proof signs: Exd II BT6, Exd II CT6, Exia II CT6, Exe II T6
Protection Level: IP54, * IP65
Inlet Thread (G): 1/2, 3/4, 1, 11/4, 11/2, 2
External diameter of cable (phi, mm): 6.5~phi 11, 10~phi 14, 12~phi 19, 15~phi 25, 18~phi 33, 26~phi 43
Note: The rated voltage of Exia II CT6 products is below DC24V and the rated current is below 20mA.
Scope of application:
Dangerous places in zones 1 and 2;
Applicable to class II A, II B, II C explosive gas environment;
Enhanced safety explosion-proof junction box is also suitable for combustible dust sites.
In the AC 50Hz, voltage to 380V line, as a connection of various electrical equipment, wiring, but also as a connection of automatic control, communication signals and power lines.
3. Product characteristics:

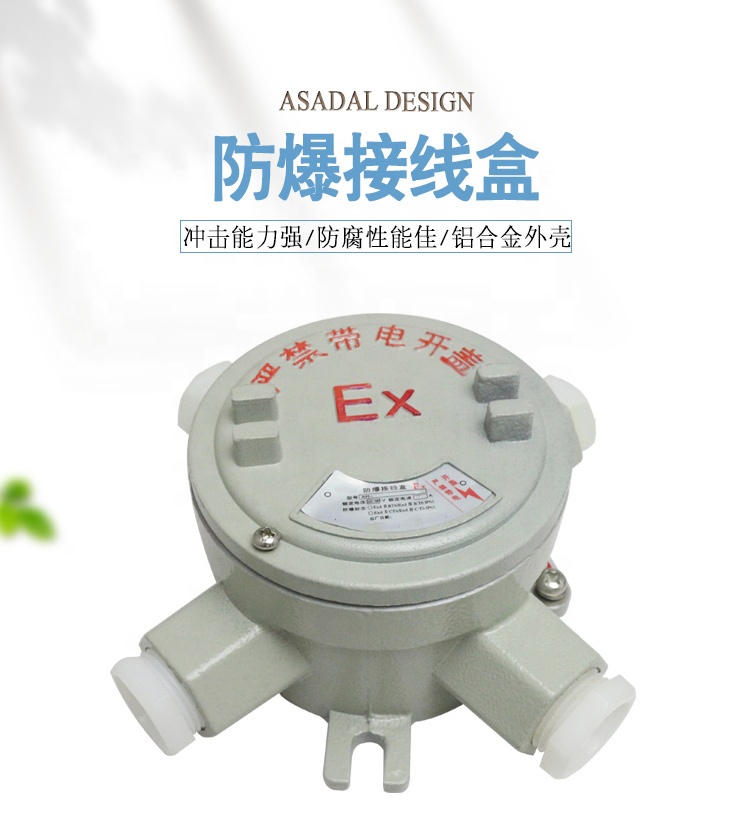

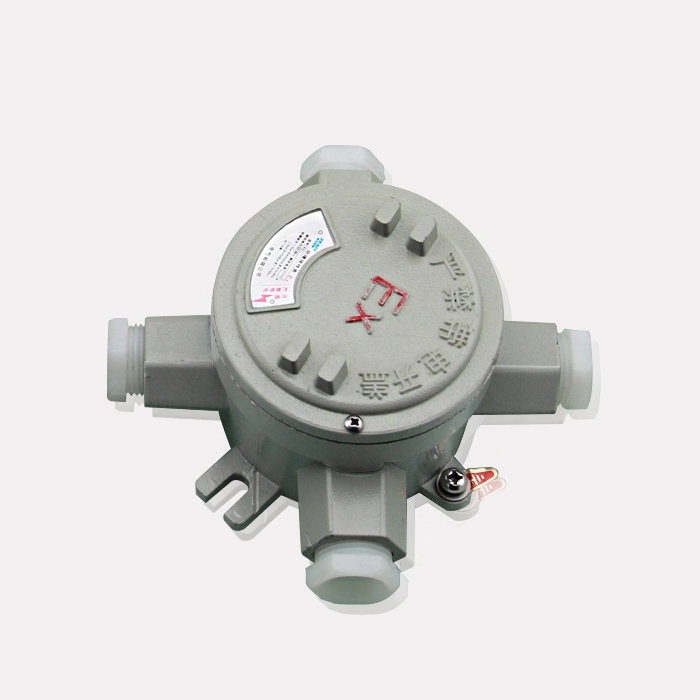

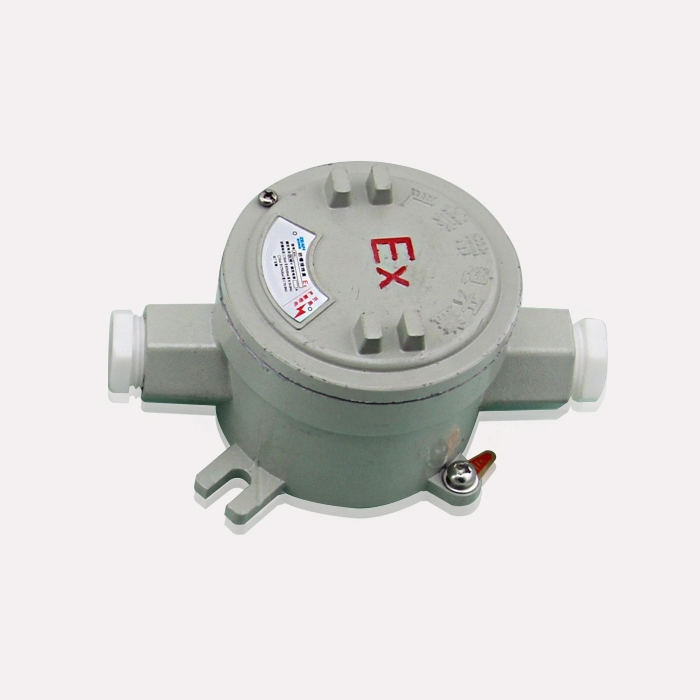

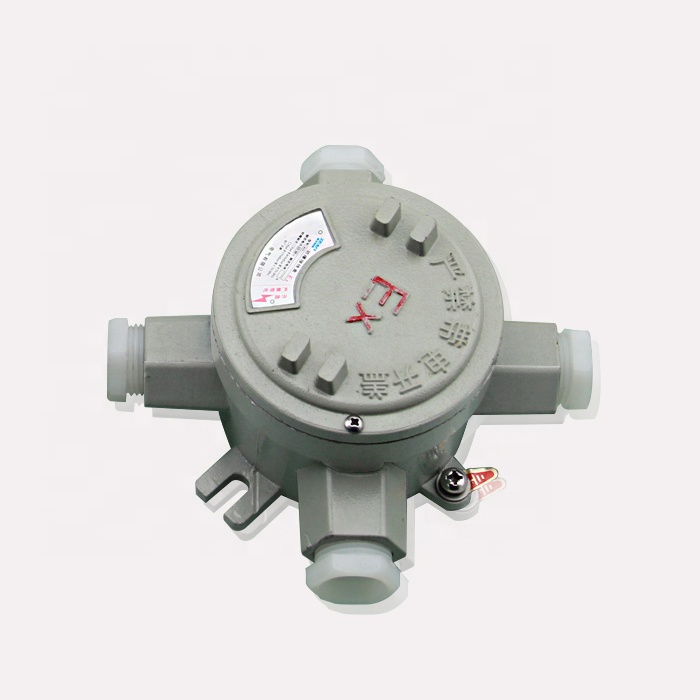

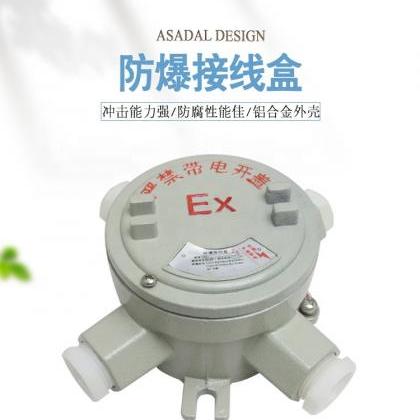

The shell is made of ZL102 aluminium alloy by die casting with high voltage electrostatic spraying.
The joint surface adopts winding sealing structure, which has strong waterproof and dust-proof functions.
The wiring terminal adopts "Weidmuller" or "UTILITY" wiring terminal, which is convenient, firm and reliable, and has a variety of specifications for users to choose.

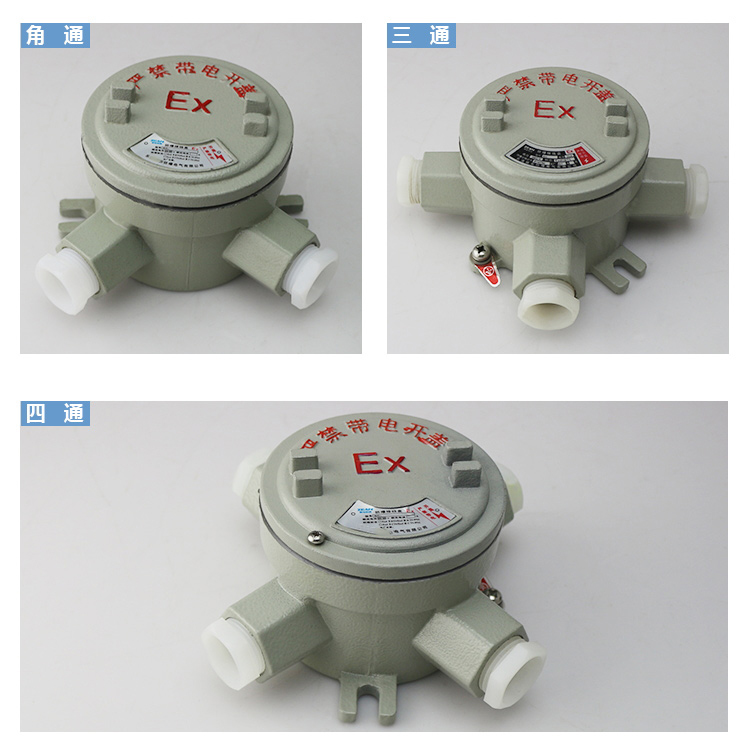

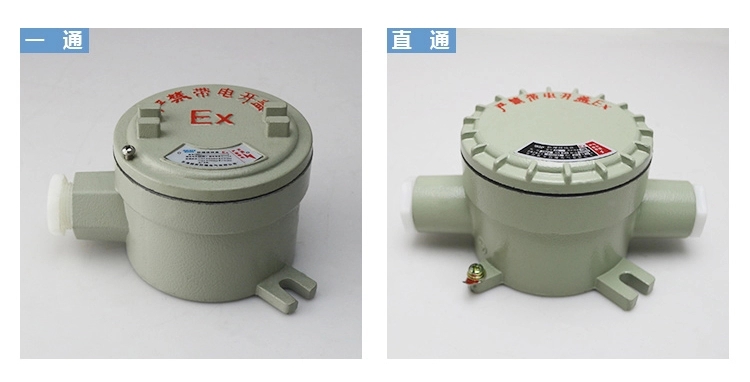

The direction of the inlet is changeable, and the inlet can be selected arbitrarily according to the user's requirements, and the BDM series cable clamp tight sealing joint can be assembled directly according to the user's requirements.
