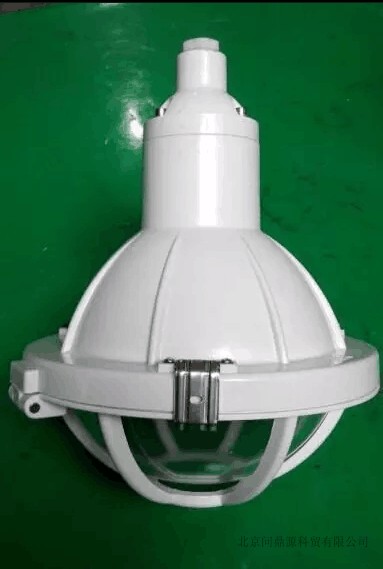

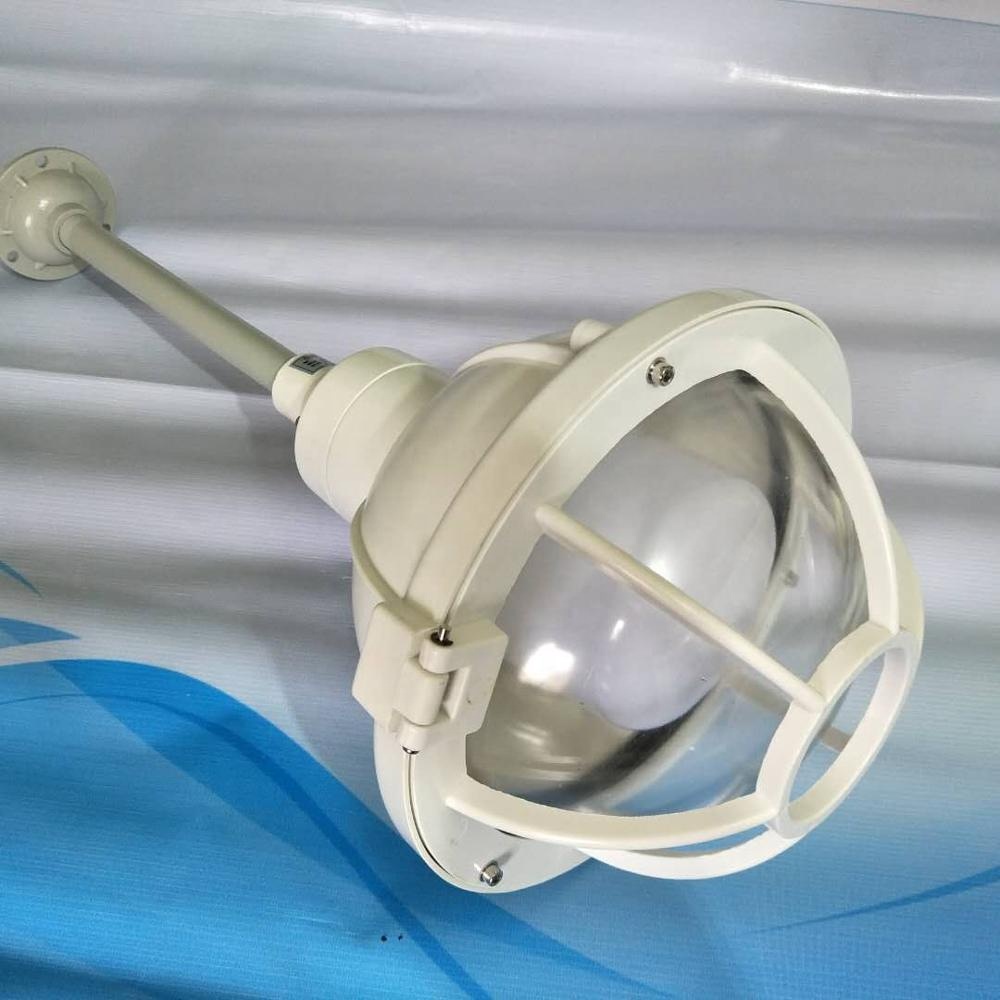

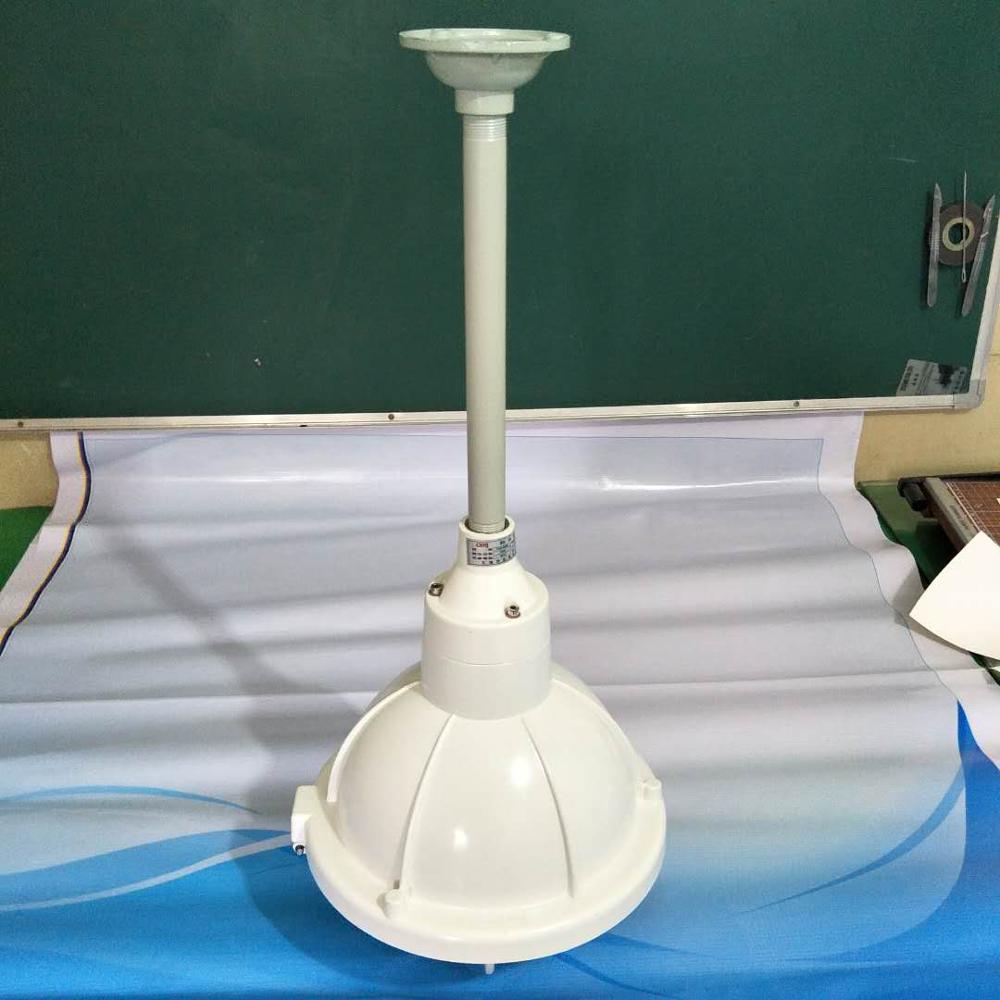

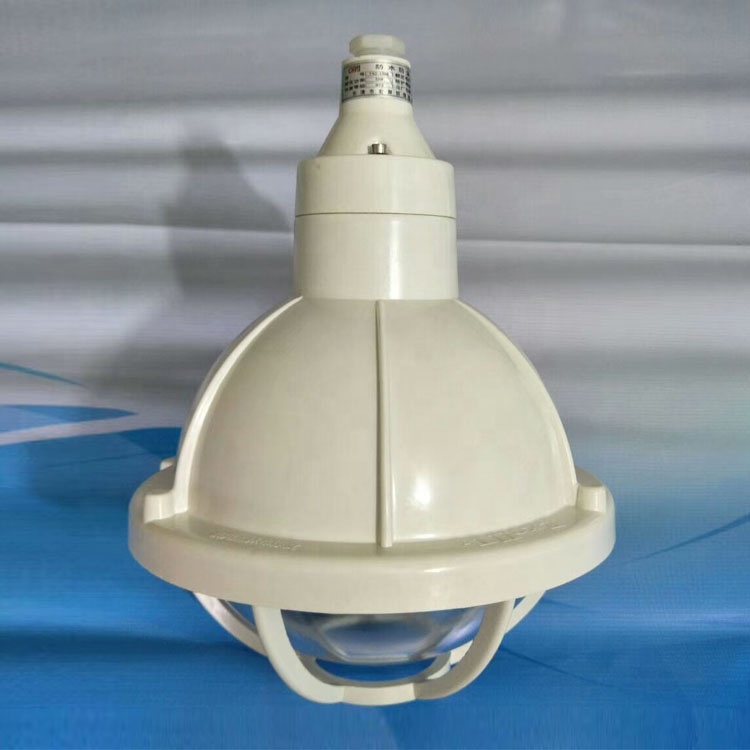

I. introduction of BGL200S increased safety explosion-proof and anticorrosive lamp
Suitable for explosive gas environment zone 2;
Suitable for IIA, IIB, IIC explosive gas environment;
Suitable for temperature groups t1-t3;
Suitable for incandescent lamp, mercury vapor l
It is suitable for explosive and dangerous environment such as oil mining, storage, chemical industry, medicine, military industry and military facilities.
Ii. Technical parameters of BGL200S increased safety explosion-proof and anticorrosive lamp
Explosion mark: ExeIIT3
Rated voltage: AC220V
Lamp holder specification: E27 light source: B200, Z125, Z160
Protection level: WF2
Introduction port specification: g3/4
Suitable for cable diameter: Φ 9 mm - Φ 14 mm
Iii. Features of BGL200S increased safety explosion-proof and anticorrosive lamp
The shell is made of reinforced glass fiber unsaturated polyester resin engineering material.
High strength tempered glass lampshade;
The exposed fastener is made of stainless steel with high anticorrosive performance.
The joint surface is equipped with sealing gasket, which is waterproof and oil-resistant, with good protective performance.
The installation mode is various, adopt the buckle structure, the slipknot bolt fastens, can open quickly, easy to install and maintain;
